BSKDS

                  BSK/DS

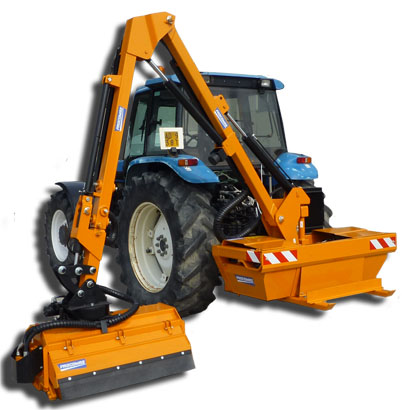

Procomas presents the NEW series of professional hydraulic arm-mounted brushcutters BSK/DS, which can be applied to the rear or front of the tractor and work on both the right and left sides of it. When operating with the brushcutter on the rear, it is already designed to work with the head in an advanced position of 20° for a better vision during the work phase by the operator.

Technical specifications and standard accessories:

• 5.60-meter outreach from tractor center to flail mower outer, including a 80 cm detachable by hydraulic control
• Suitable for installation on tractors with 110/120 Hp for the rear version or tractors with reverse drive, 150/160 Hp for the front version
• 100-120cm flail mower working width and a reversible rotor with universal Y-type F3-F4-F5 knives, adjustable front and rear protections, and height-adjustable support roller
• Independent double circuit hydraulic system with high-performance cast iron gear motor and pump; rotor power of 56 Hp (41 Kw), 2,900 revolutions per minute
• Electro-hydraulic controls with constant flow and joystick
• Wide surface heat exchanger with thermostat
• Head rotation on double-row ball bearing activated by hydraulic motor
• Safety device for absorbing any frontal impacts in both working directions
• Equipment weight of 1200 kg, variable depending on the version or working width

Scarica il PDF

Cutting Tools
F1 (60x6) F3 (60x8)	F5	F8
