BS935C

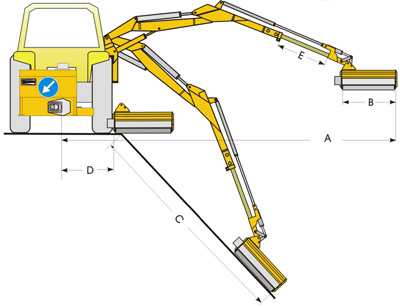

HYDRAULIC CENTRAL FLAIL MOWER BS935

Installed central on tractor, built with high strength T1A steel sheet; all joints are mounted on cemented and grease-lubricated sockets, good performance with a professional cut especially for those operating in the highway sector.

MACHINE SUPPLIED COMPLETE WITH:

• 100 or 120 cm heavy-duty work hydraulic flail mower with standard Y-type F1 or F3 tine with reversibility shaft port tine, CE protections and adjustable height roller. On request rotor F4-F5-F6-F8
• Independent double circuit hydraulic system with high performance cast iron gear motor and pump
• Multiplier for oil bath pumps and a Power Take-Off of 540 rpm
• High resistance tubes protected by spiral
• Commands by means of flexible cables
• Device for absorbing any frontal impacts
• Oil tank with 160 liters
• Mounting on tractor at our headquarters
• Tensioners and cardan
• CE manual with spare parts tables and conformity declaration

 ACCESSORIES ON REQUEST

• Air-oil cooling system mounted
• Hydro-pneumatic compensator on lift cylinder
• Constant flow electro-hydraulic controls with joystick
• High-pressure gear motor and pump system.
• Hydraulic piston system with variable flow pump.
• Rear support with lighting
• REAR BLOWER COMPLETE WITH HYDRAULIC ENGINE

Cutting Tools
F1 (60x6) F3 (60x8)	F4 (Heavy duty type hammer)	F5 (Swivel cutting blade)	F6 (Rotating hammer)	F8 (Light flat hoe type)
